Description

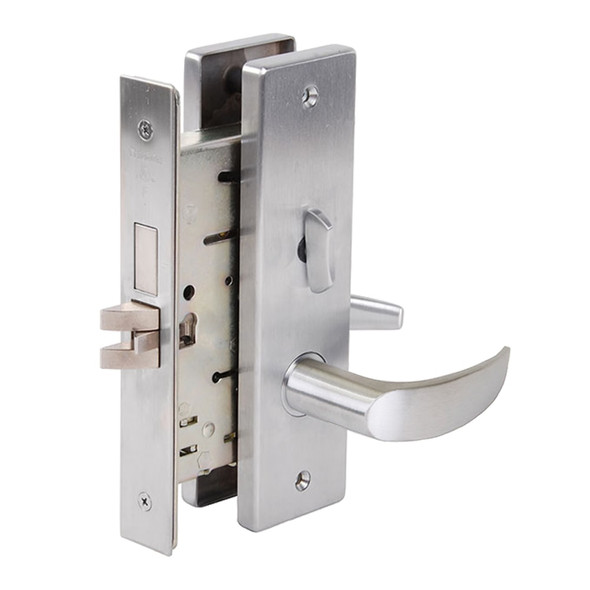

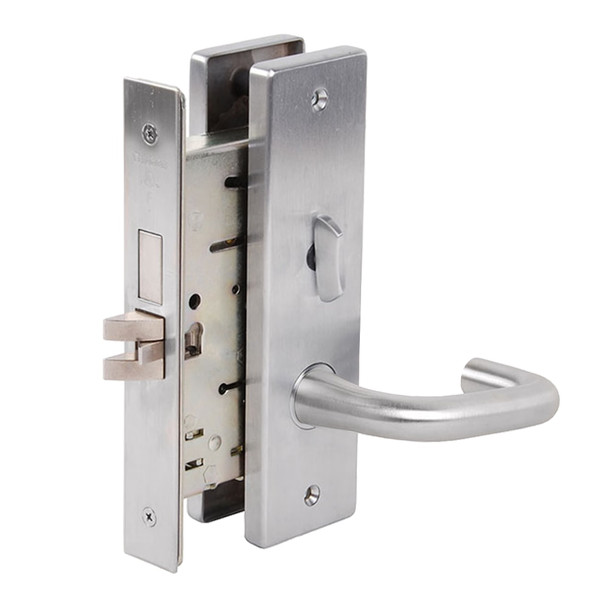

The Falcon MA541L mortise lock delivers commercial-grade security and reliability for offices, hospitals, education facilities, and high-traffic commercial spaces. Built tough with a cold-formed steel case and hardened steel components, this ANSI/BHMA Series 1000 lock withstands constant use without fail and features an interchangeable core for quick re-keying.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and SFIC products from other manufacturers, the MA541L installs with a 2-3/4" backset. Right-hand handing is standard; left-hand and field reversibility are available. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and installation guidance from an authorized Falcon dealer.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541L
- Finish: Satin Nickel (626)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case Material: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with two 13/16" diameter saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Handing: Right-hand standard; left-hand optional; field reversible
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified Functions: Available in 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1 strike
