Description

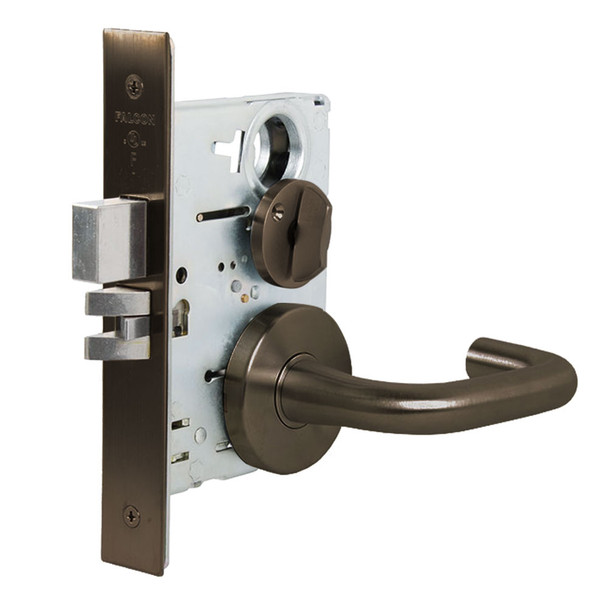

The Falcon MA541L SG 613 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It features a 1-inch throw deadbolt with saw-resistant rollers and a mechanical anti-friction latch bolt, making it ideal for high-traffic doors requiring dependable security and durability without frequent maintenance or failure.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" and comes standard with a 2-3/4" backset and right-hand handing (left-hand reversible in field). The interchangeable core design allows quick re-keying using SFIC-compatible cylinders. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying options, and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA541L SG 613
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Standard Keyway: G keyway (standard cylinder); A keyway (I/C cylinder)
- Keys Furnished: Two nickel silver keys standard
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Deadbolt: 1" throw, stainless steel with two 13/16" diameter hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: Available in 12 or 24 VDC
- ANSI/BHMA Certification: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
