Description

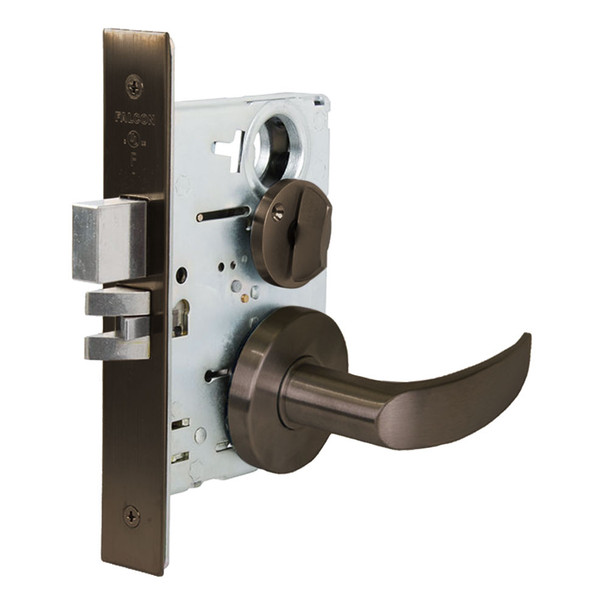

The Falcon MA541L AG 613 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It combines security with durability to withstand constant daily use without compromise. The interchangeable core design enables quick re-keying and compatibility with other SFIC products, making it ideal for retrofit installations.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and features a 1" throw deadbolt with saw-resistant rollers. It meets ANSI/BHMA Series 1000 standards and carries a 3-hour UL label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified function availability.
Specifications
- Brand: Falcon
- Model: MA541L AG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Projection: 3/4"
- Deadbolt Throw: 1"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Standard Keyway: G (standard cylinder), A (I/C cylinder)
- Keys Furnished: Two nickel silver keys
- Faceplate: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified Functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
