Description

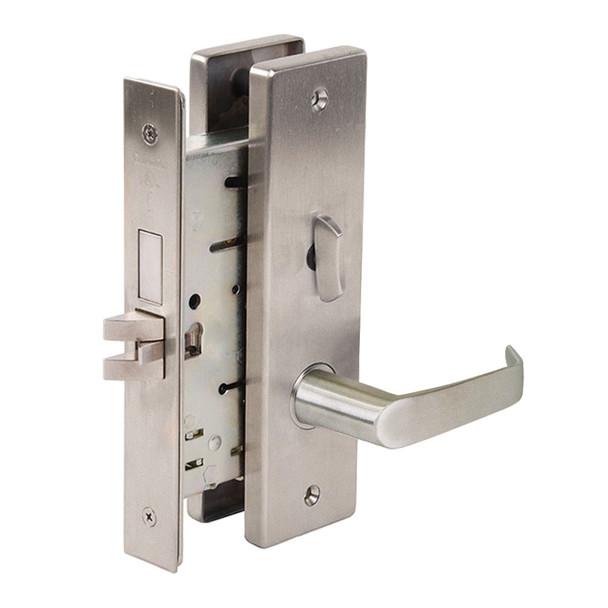

The Falcon MA541P DN 630 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying without removing the lock body, while the two-piece stainless steel latch and saw-resistant roller deadbolt deliver reliable security through constant daily use.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards plus UL 3-hour fire rating. As an authorized Falcon dealer, E.D. Locks provides expert installation guidance and keying support. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or to arrange re-keying services.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541P DN 630
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case Material: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G-keyway standard cylinder, A-keyway I/C cylinder
- Handing: Right hand standard, left hand optional, reversible
- Finishes: Brass or stainless steel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified Options: 12 or 24 VDC available
- Keys Furnished: Two nickel silver keys
