Description

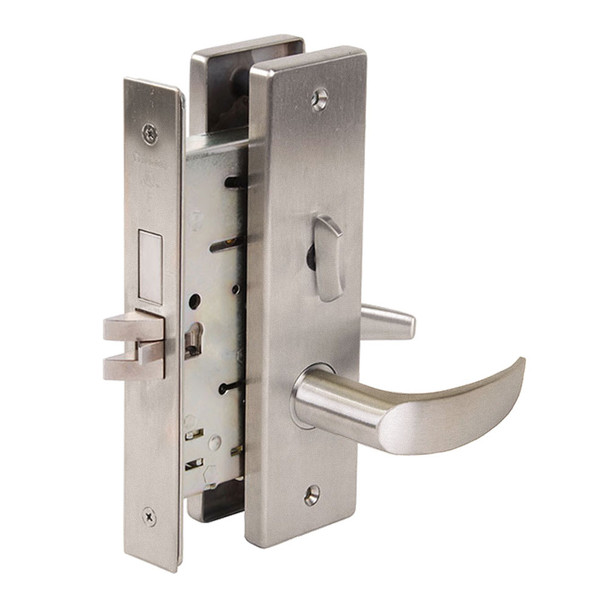

The Falcon MA541P mortise lock is a high-performance security solution designed for commercial environments including offices, hospitals, and educational facilities. Built tough for constant use, this lock combines dependable operation with affordability, delivering the security and durability your institution needs without compromise.
The MA541P features an interchangeable core (SFIC compatible) for quick re-keying and field reversibility for flexible installation. It accommodates standard door thicknesses from 1-3/8" to 2-1/2" and meets ANSI/BHMA 156.13 Series 1000 standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on specifications, keying options, and electrified configurations.
Specifications
- Brand: Falcon
- Model: MA541P AN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Deadbolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin I/C
- Keys: Two nickel silver keys furnished
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Handing: Right hand standard, left hand optional, field reversible
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
