Description

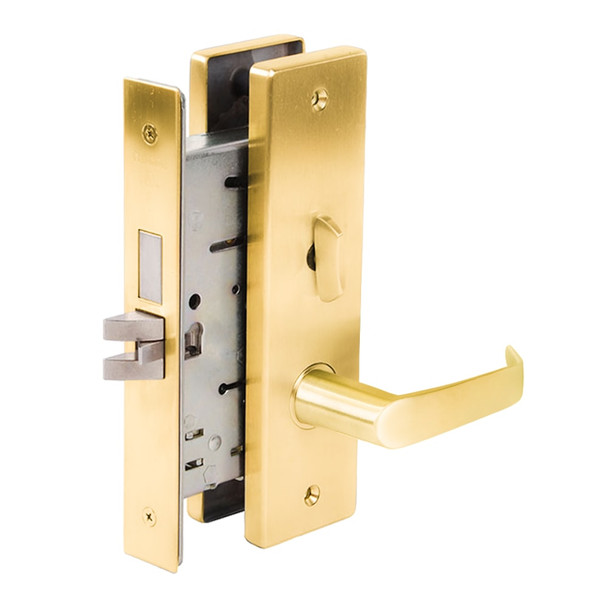

The Falcon MA541P DN 605 is a commercial mortise lock engineered for high-traffic office, hospital, and educational environments. This durable, ANSI/BHMA Series 1000-rated lock combines a mechanical anti-friction latch with a saw-resistant deadbolt, delivering dependable security and performance through constant daily use.
The MA541P features an interchangeable core (SFIC-compatible) for fast re-keying and fits standard 1-3/8" to 2-1/2" door thickness with a 2-3/4" backset. An authorized E.D. Locks dealer, we provide expert guidance on keying options, handing, electrified configurations, and finish selection. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified Functions: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
