Description

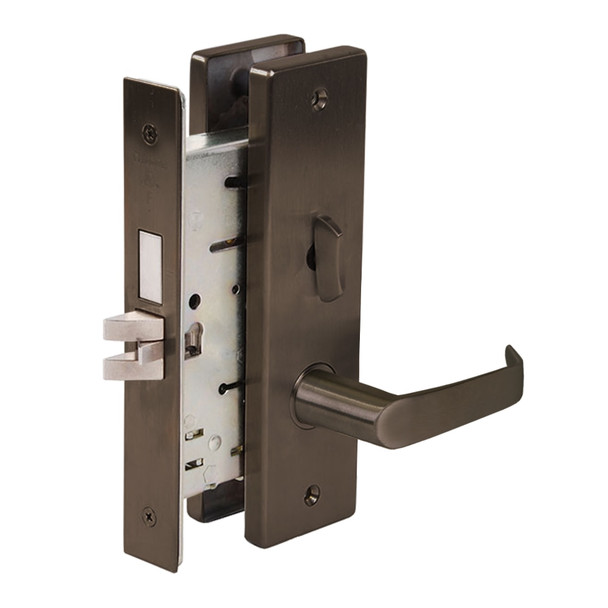

The Falcon MA541P DN 613 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, it combines dependable security with interchangeable core technology for fast re-keying, ideal for high-traffic doors requiring frequent access changes.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour A label standards. It accepts SFIC interchangeable cores and standard cylinders with multiple pin options. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, finish selection, and installation support on this commercial-grade mortise lock.
Specifications
- Brand: Falcon
- Model: MA541P DN 613
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Standard Keyways: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard; left hand optional, reversible
