Description

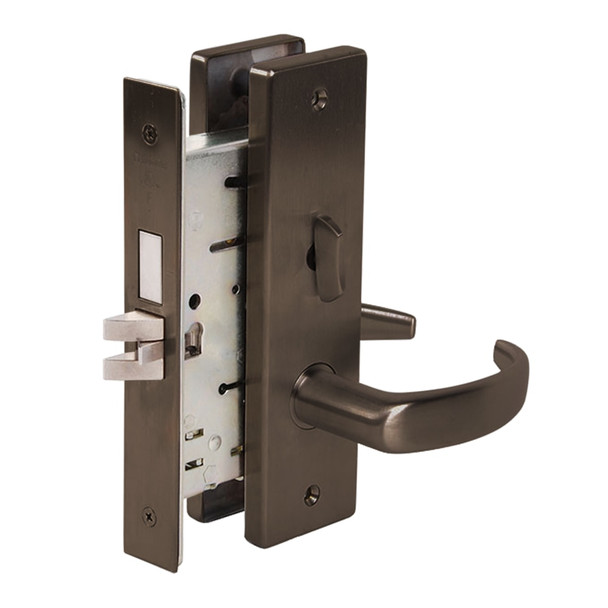

The Falcon MA541P QN 613 is a heavy-duty mortise lock designed for high-traffic commercial environments including offices, hospitals, and educational facilities. Built with a cold-formed steel case and hardened steel hubs, this ANSI/BHMA Series 1000 lock combines security with dependability, featuring a 1-inch throw deadbolt with saw-resistant rollers and a mechanical anti-friction latch bolt.
The MA541P accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core for easy re-keying compatible with SFIC standards. Available in 12 or 24 VDC electrified functions and rated for 3-hour fire ratings. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting the right configuration, keying options, and installation support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand and field-reversible optional
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder) or A keyway (I.C. cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant
- Electrified: 12 or 24 VDC available
- Ratings: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
