Description

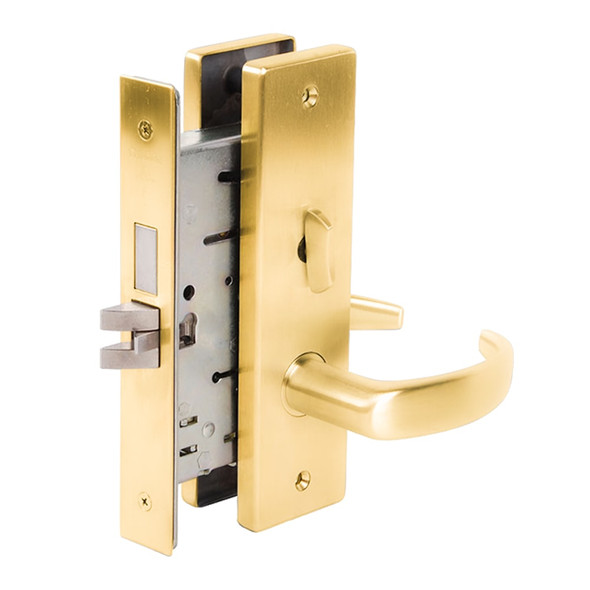

The Falcon MA541P QN 626 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, this lock delivers dependable security and withstands constant daily use without compromise. Its interchangeable core design enables quick re-keying in the field, reducing downtime and maintenance costs.
The MA541P accommodates standard door thickness of 1-3/8" to 2-1/2" and features a 2-3/4" backset. It accepts SFIC cores compatible with other manufacturers and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label ratings. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for specification confirmation, keying options, and installation guidance specific to your project.
Specifications
- Brand: Falcon
- Model: MA541P QN 626
- Finish: Satin Chrome (QN)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Deadbolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core
- Keyways: G-keyway standard cylinder, A-keyway I/C cylinder
- Hubs: Hardened steel
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, non-handed
- Handing: Right hand standard, left hand optional, field reversible
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
