Description

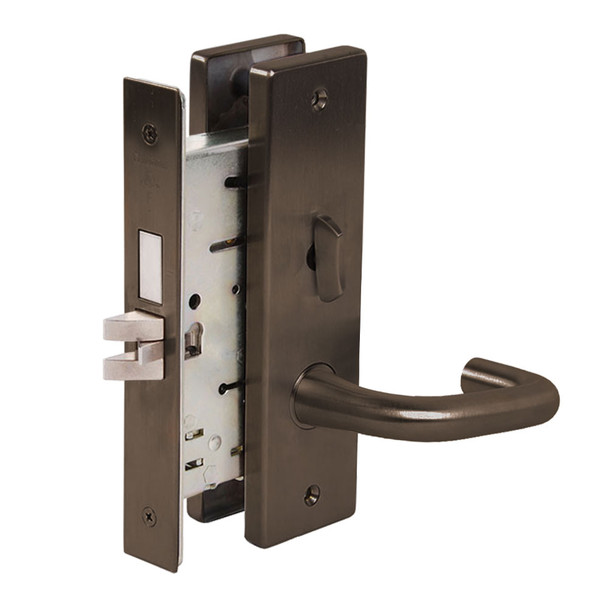

The Falcon MA541P is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This heavy-duty lock combines security with durability, featuring a two-piece stainless steel latch bolt, 1 inch throw deadbolt with saw-resistant rollers, and cold-formed steel construction to withstand constant use without fail.
The MA541P accepts standard or interchangeable cores (SFIC-compatible) for flexible keying and quick re-keying in the field. It fits door thicknesses from 1-3/8 inch to 2-1/2 inch with a 2-3/4 inch backset. As an authorized Allegion dealer, E.D. Locks provides expert consultation on handing, finishes, electrification options, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541P
- Finish: Satin Nickel (613)
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch only
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyway: G-keyway standard cylinder; A-keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Deadbolt: 1 inch throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available in 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000; UL 3 hour A label
- Keys Furnished: Two nickel silver keys standard
