Description

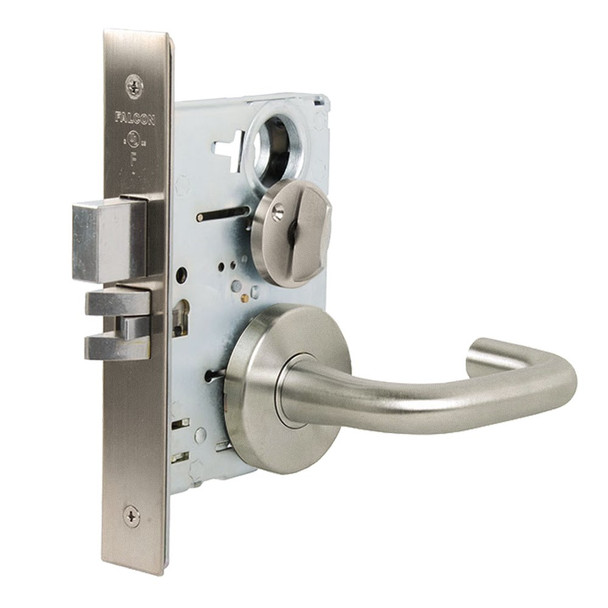

The Falcon MA541P SG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education facilities. This durable ANSI Series 1000 lock features a mechanical anti-friction latch, saw-resistant deadbolt, and interchangeable core (SFIC) for quick re-keying without removing the lock from the door.
Standard door thickness accommodation is 1-3/8" to 2-1/2" with 2-3/4" backset. Supplied with two nickel silver keys and available in right or left hand (field reversible). Contact our experts at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and electrified function availability to ensure proper specification for your project.
Specifications
- Brand: Falcon
- Model: MA541P SG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway standard cylinder; A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- ANSI/BHMA: Series 1000 (ANSI/BHMA 156.13)
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
- Keys Included: Two nickel silver keys
