Description

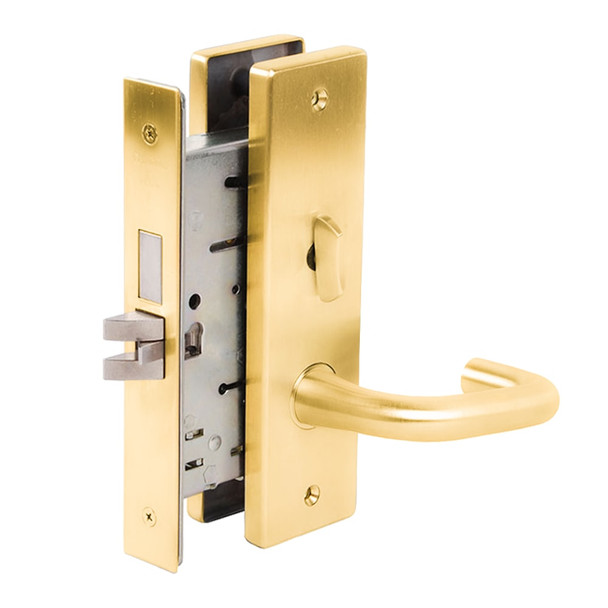

The Falcon MA541P mortise lock is a high-performance, heavy-duty solution for commercial offices, hospitals, schools, and institutional buildings. Built for constant use without fail, this ANSI/BHMA Series 1000 lock combines reliable security with affordable cost, featuring a mechanical anti-friction latch and saw-resistant roller dead bolt for maximum protection.
Designed for standard door thicknesses of 1 3/8" to 2 1/2" with 2 3/4" backset, this lock accepts SFIC interchangeable cores for easy re-keying and is field-reversible between right and left hand. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified configurations, and installation support. Contact sales@edlocks.com or call 1-877-207-6067 for technical assistance.
Specifications
- Brand: Falcon
- Model: MA541P
- Finish: Satin Nickel (605)
- Door Thickness: 1 3/8" to 2 1/2"
- Backset: 2 3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin or interchangeable core options
- Keys: Two nickel silver keys standard
- Keyways: "G" keyway (standard cylinder), "A" keyway (I/C cylinder)
- Faceplates: 1 1/4" x 8" brass or stainless steel, adjustable for bevel
- ANSI/BHMA: 156.13 Series 1000
- UL Rating: 3 hour A label
- Electrified: 12 or 24 VDC available
- Handing: Right hand standard, left hand reversible
