Description

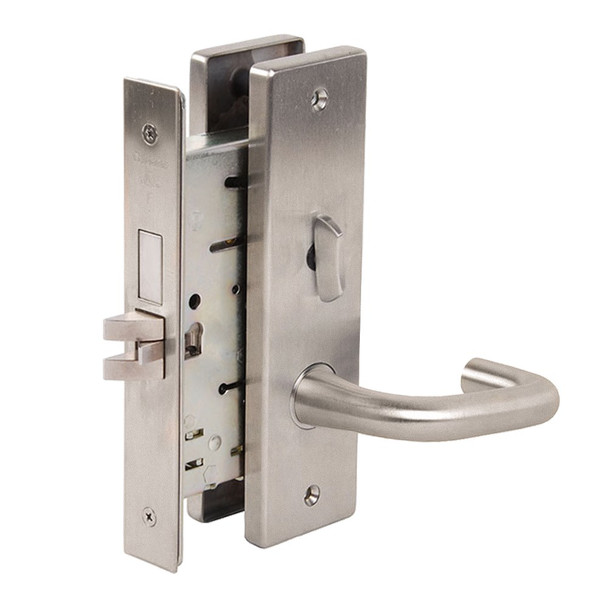

The Falcon MA541P is a commercial-grade mortise lock engineered for offices, hospitals, schools, and other high-traffic facilities. This durable lock combines security with dependability, featuring a mechanical anti-friction latch bolt and a saw-resistant dead bolt roller system designed to withstand constant daily use without failure.
The MA541P accepts interchangeable cores (SFIC compatible) for fast re-keying and field reversal between left and right hand configurations. It accommodates standard door thicknesses of 1 3/8" to 2 1/2" with a 2 3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finishes, and electrified versions (12 or 24 VDC available). Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA541P
- Finish: Satin Nickel (630)
- Door Thickness: 1 3/8" to 2 1/2"
- Backset: 2 3/4"
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Hubs: Hardened steel
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Handing: Right hand standard, left hand optional, reversible
- Faceplate: 1 1/4" x 8" armored brass or stainless steel
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available in 12 or 24 VDC
