Description

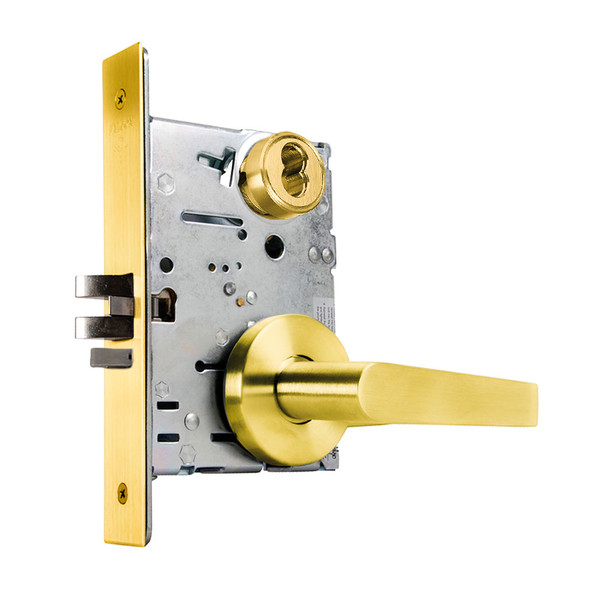

The Falcon MA561B DG 605 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. This dependable ANSI/BHMA Series 1000 lock combines security with durability, featuring a two-piece stainless steel latch bolt, 1-inch throw dead bolt with saw-resistant rollers, and cold-formed steel construction built to withstand constant use without failure.
The MA561B accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core (SFIC compatible) for quick re-keying. It meets UL 3-hour A label ratings and ANSI A115.1 strike standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keying options, electrified configurations, and finish selection to ensure the perfect fit for your project.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" hardened steel, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified Functions: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
