Description

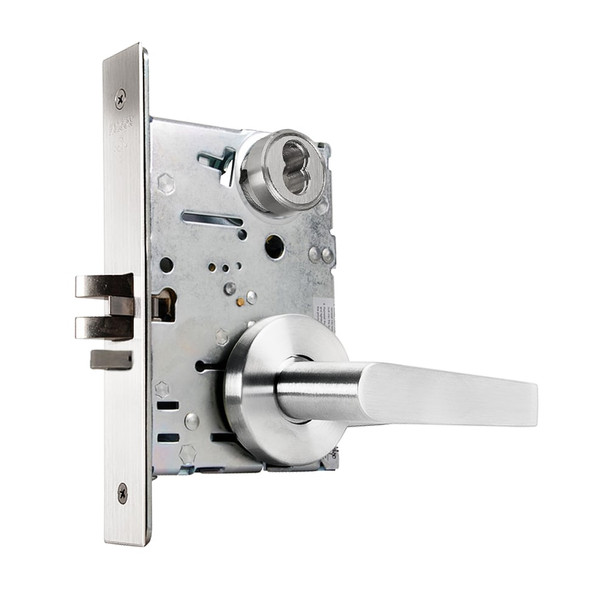

The Falcon MA561B DG 625 mortise lock delivers high-performance security for commercial buildings including offices, hospitals, and educational facilities. Built for constant use without failure, this durable lock features a tough cold-formed steel case, stainless steel latch and deadbolt, and interchangeable SFIC core for easy re-keying and retrofit installations.
The MA561B accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A-label standards. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing options, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and competitive pricing.
Specifications
- Brand: Falcon
- Model: MA561B DG 625
- Lock Type: Mortise lock with interchangeable core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case Material: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Strike: Brass or stainless steel, non-handed
- Handing: Right hand standard; left hand optional, reversible in field
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3-hour A label
- Electrified Options: 12 or 24 VDC available
- Supplied With: Two nickel silver keys
