Description

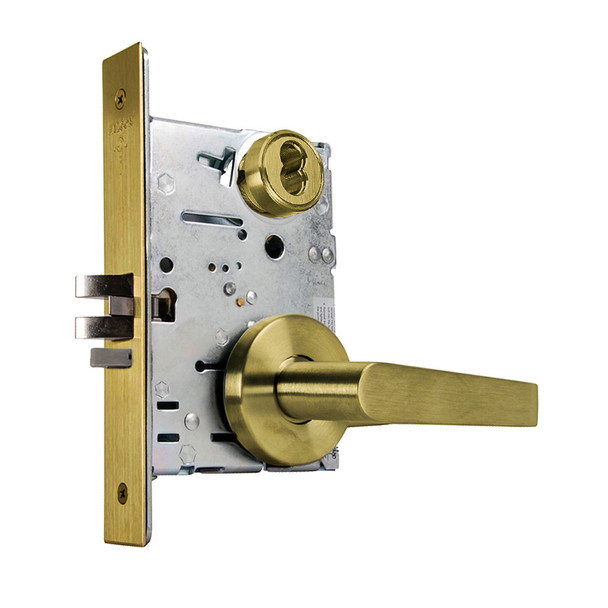

The Falcon MA561B DG 606 is a commercial mortise lock engineered for offices, hospitals, schools, and other demanding environments. This high-performance lock combines security with durability, featuring a two-piece stainless steel latch bolt and a 1-inch throw dead bolt with saw-resistant rollers. Its interchangeable core design allows quick re-keying without removing the lock from the door.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and a 2-3/4" backset, this lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Right-hand handing is standard with left-hand available and field-reversible. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions, and installation support.
Specifications
- Brand: Falcon
- Model: MA561B DG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard cylinder, A keyway interchangeable core
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Handing: Right hand standard, left hand optional, field-reversible
- Electrified: Available 12 or 24 VDC
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
