Description

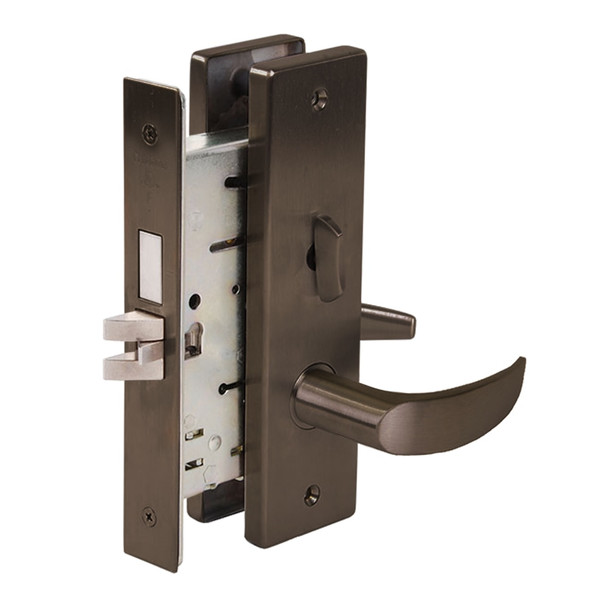

The Falcon MA Series mortise lock delivers high-performance security at an affordable cost for commercial applications including offices, hospitals, and educational facilities. Built tough for constant use, this lock features an interchangeable core for quick re-keying and SFIC compatibility, making it ideal for projects requiring flexibility and dependability backed by Allegion's reputation.
Compatible with standard door thicknesses from 1-3/8" to 2-1/2" and a 2-3/4" backset, the MA571CP6 AN 613 is reversible in the field for both right and left hand installations. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified functions, and finish selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for specifications and installation support.
Specifications
- Brand: Falcon
- Model: MA571CP6 AN 613
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (IC cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", adjustable for door bevel
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Electrified Functions: 12 or 24 VDC available
