Description

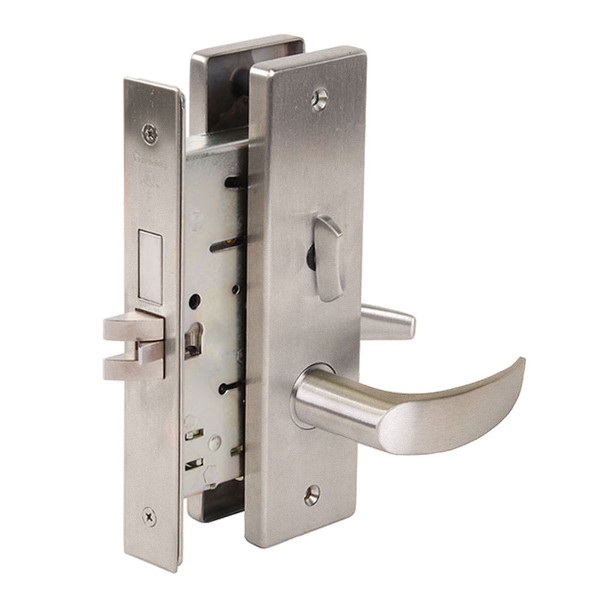

The Falcon MA571CP6 mortise lock delivers high-performance security for commercial offices, hospitals, and educational facilities. This dependable lock withstands constant daily use without fail, featuring a mechanical anti-friction latch bolt and a 1-inch throw dead bolt with saw-resistant rollers for reliable protection.
The interchangeable core cylinder (SFIC-compatible) enables quick re-keying in the field without removing the lock body. Standard 2-3/4-inch backset fits doors 1-3/8 to 2-1/2 inches thick. As an authorized Falcon dealer, E.D. Locks provides expert specification support and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for keying options and finish selection.
Specifications
- Brand: Falcon
- Model: MA571CP6 AN 630
- Lock Type: Mortise
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inch
- Case Material: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw stainless steel with hardened steel rollers
- Cylinder: Solid brass, 6-pin interchangeable core
- Keyway: A keyway standard on I/C cylinder
- Faceplate: 1-1/4 x 8 inch brass or stainless steel
- Handing: Right hand standard, left hand reversible
- ANSI/BHMA: Meets 156.13 Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
