Description

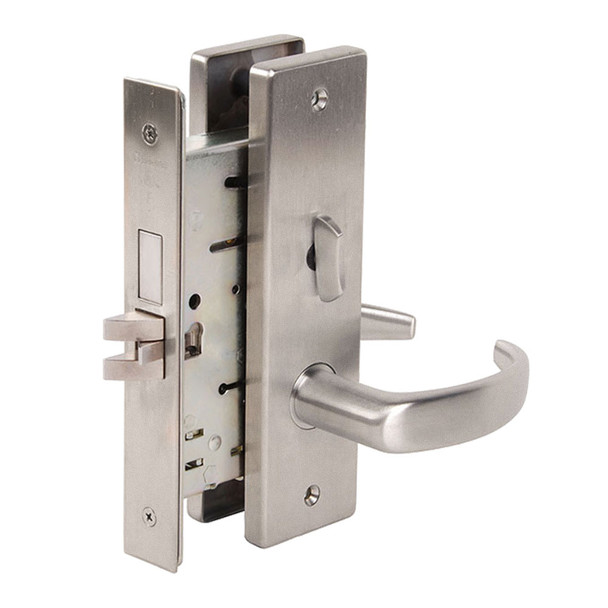

The Falcon MA Series mortise lock combines high performance with affordability for commercial environments including offices, hospitals, and educational facilities. Built for constant use, this durable lock features a two-piece stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers, delivering dependable security without compromise.
This lock accommodates door thickness from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC compatible) for fast re-keying and easy maintenance. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, installation, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with hardened steel rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Electrified: Available 12 or 24 VDC
