Description

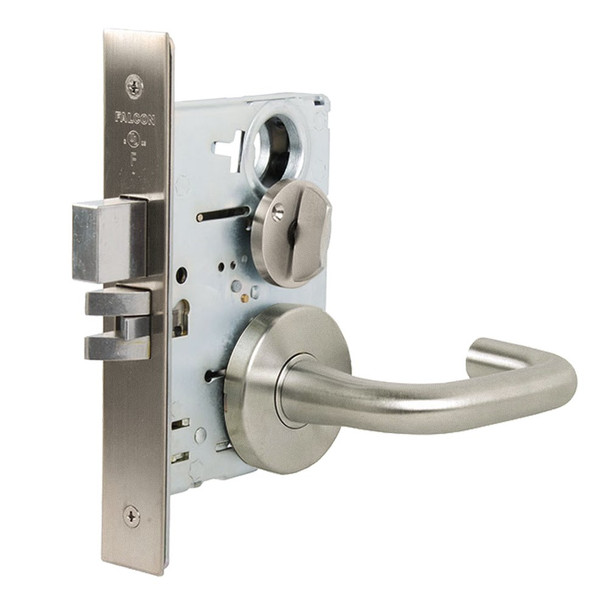

The Falcon MA571CP6 is a commercial-grade mortise lock built for offices, hospitals, schools, and high-traffic facilities. Its two-piece stainless steel latch and deadbolt with saw-resistant rollers deliver dependable security and durability through constant use. The interchangeable core design enables quick, field-reversible re-keying without removing the lock from the door.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and fits SFIC-compatible cylinders. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL fire rating. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and finish selection. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Brand: Falcon
- Model: MA571CP6 SG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel rollers
- Faceplate: 1-1/4" x 8" stainless steel, adjustable for bevel
- Cylinders: Solid brass, 6-pin standard
- Keyway: G keyway (standard cylinder), A keyway (interchangeable core)
- Finishes: Satin Stainless available; other finishes per Falcon chart
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3-hour A label
- Handing: Right hand standard, left hand optional, reversible
