Description

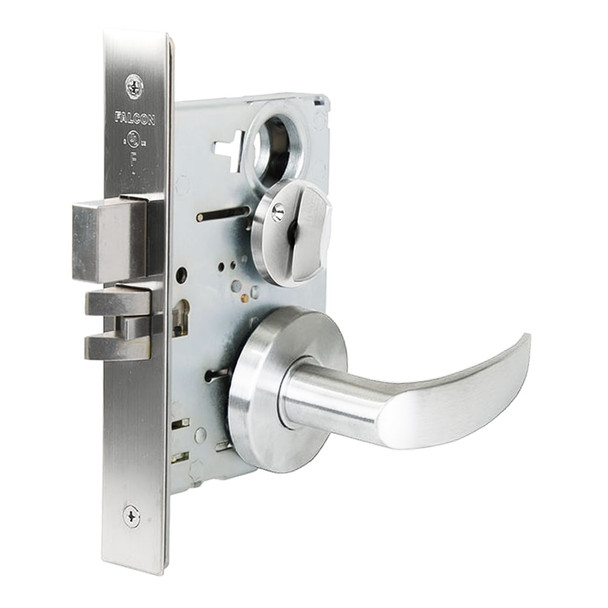

The Falcon MA571L AG 625 is a commercial mortise lock engineered for high-traffic office, hospital, and education facilities. This durable lock combines security with reliability, featuring a mechanical anti-friction latch and hardened steel roller deadbolt. Its interchangeable core design enables quick re-keying without lock removal, reducing downtime and maintenance costs.
The MA571L fits door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards with a 3-hour UL A label. It is compatible with standard SFIC products and available in multiple pin configurations and finishes. Contact E.D. Locks' experts at sales@edlocks.com or 1-877-207-6067 for specification confirmation, keying options, and authorized dealer support.
Specifications
- Brand: Falcon
- Model: MA571L AG 625
- Type: Mortise Lock with Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Handing: Right hand standard; left hand and field-reversible options
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: G keyway (standard cylinder) or A keyway (I/C cylinder)
- Finish: AG (Satin Chrome)
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Electrified: 12 or 24 VDC available
