Description

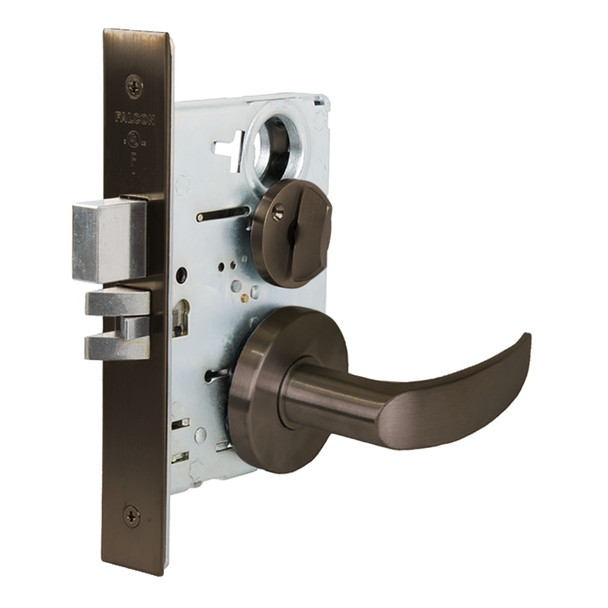

The Falcon MA571L AG 613 is a commercial mortise lock built for high-traffic office, hospital, and education environments. This heavy-duty lock combines security with dependability, featuring a two-piece stainless steel latch bolt, 1 inch dead bolt with saw-resistant rollers, and an interchangeable core for quick re-keying without removing the lock from the door.
The MA571L fits standard door thicknesses of 1-3/8 inch to 2-1/2 inch and is reversible in the field for left or right-hand installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finishes, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support and fast shipping on orders over $450.
Specifications
- Brand: Falcon
- Model: MA571L AG 613
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway standard; optional keyways available
- Handing: Right hand standard; left hand optional, reversible
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
