Description

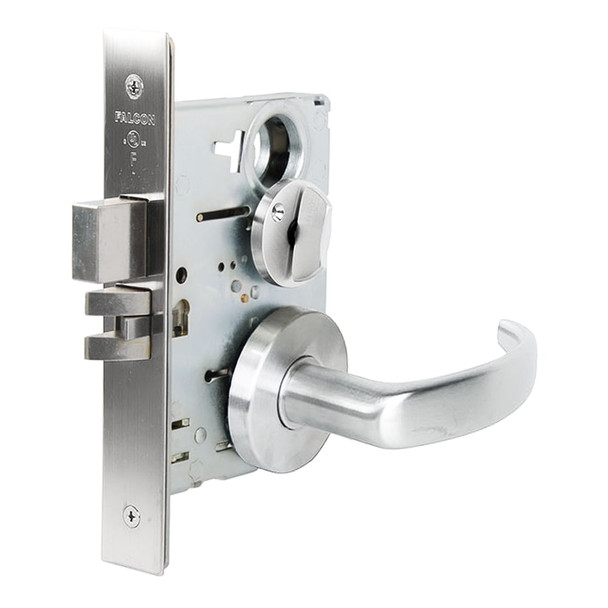

The Falcon MA571L mortise lock delivers commercial-grade security for offices, hospitals, schools, and institutional buildings. Built for high-traffic environments, this Series 1000 lock provides dependable performance with a 1-inch stainless steel deadbolt and two-piece anti-friction latch bolt, ideal for projects requiring ANSI/BHMA certification and UL 3-hour fire rating.
The MA571L features an interchangeable core (SFIC) for quick re-keying and works with standard or optional cylinders in multiple pin configurations. It fits doors 1-3/8" to 2-1/2" thick with 2-3/4" backset and is reversible for left or right-hand installation. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, finish selection, and electrified options (12/24 VDC available). Contact sales@edlocks.com or 1-877-207-6067 for specification assistance.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch bolt: Two-piece stainless steel, 3/4" projection
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin IC
- Keyways: G keyway standard cylinder, A keyway IC cylinder
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
