Description

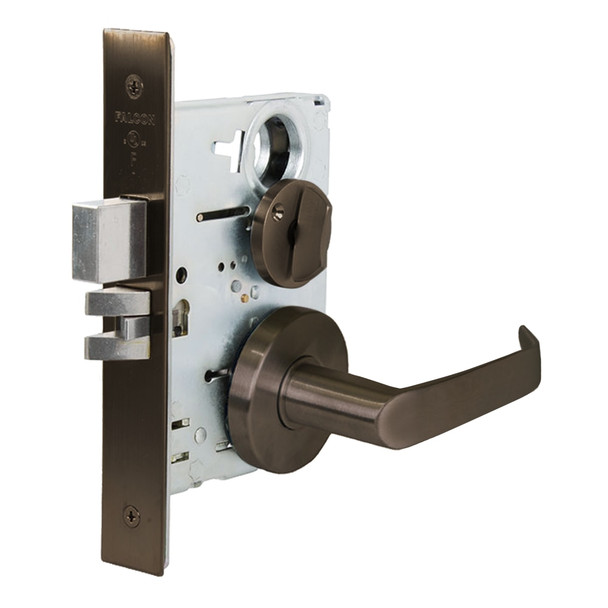

The Falcon MA571L mortise lock is a heavy-duty commercial lock designed for offices, hospitals, educational facilities, and high-traffic environments. Built for constant use, it features a two-piece stainless steel latch bolt, a 1-inch throw deadbolt with saw-resistant rollers, and an interchangeable core (SFIC) for quick re-keying without removing the lock from the door.
This lock accommodates standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible for either-hand installation. It meets ANSI/BHMA Series 1000 and UL 3-hour fire-rated standards. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert advice on keying options, finishes, and electrified variants to ensure the right fit for your project.
Specifications
- Brand: Falcon
- Model: MA571L DG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G-keyway (standard), A-keyway (I/C)
- Faceplate: 1-1/4" x 8" adjustable for door bevel
- ANSI/BHMA: Series 1000
- UL Rating: 3-hour A label
- Voltage Options: 12 or 24 VDC electrified
- Includes: Two nickel silver keys
