Description

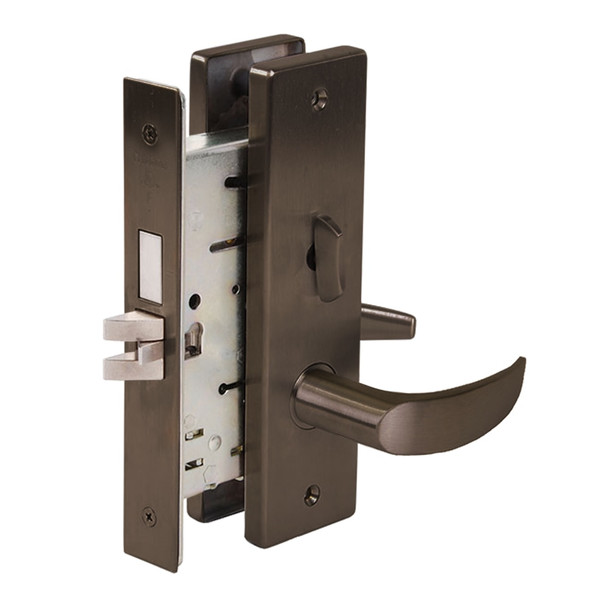

The Falcon MA571L AN 613 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This ANSI/BHMA Series 1000 lock combines security with durability, featuring a mechanical anti-friction latch bolt and a saw-resistant dead bolt with free-turning rollers. Built to withstand constant use without compromising performance.
The MA571L accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and supports interchangeable cores (SFIC) for simple re-keying. Available in right-hand (standard) or left-hand configurations, both reversible in the field. As an authorized Allegion dealer, E.D. Locks provides expert guidance on keying options, finishes, and electrified functions. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: Meets 156.13, Series 1000
- UL: 3 hour A label
