Description

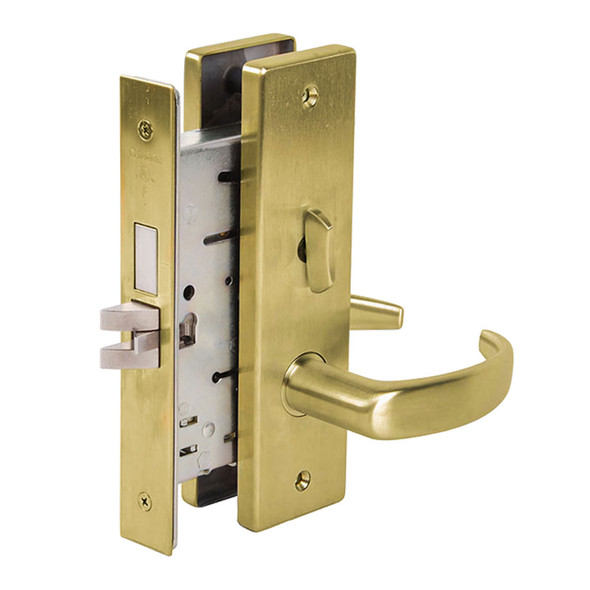

The Falcon MA571L QN 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable lock combines security with reliability, featuring an interchangeable core (SFIC compatible) for quick re-keying and a mechanical anti-friction latch bolt designed to withstand constant daily use without compromise.
The MA571L accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. Right-hand handing is standard; left-hand is available and field-reversible. For expert guidance on keying options, electrified functions, finishes, or installation assistance, contact our authorized dealer team at sales@edlocks.com or call 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA571L QN 626
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, field-reversible
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin interchangeable core
- Keys: Two nickel silver keys standard
- Keyways: G keyway standard cylinder; A keyway interchangeable core cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel, saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
