Description

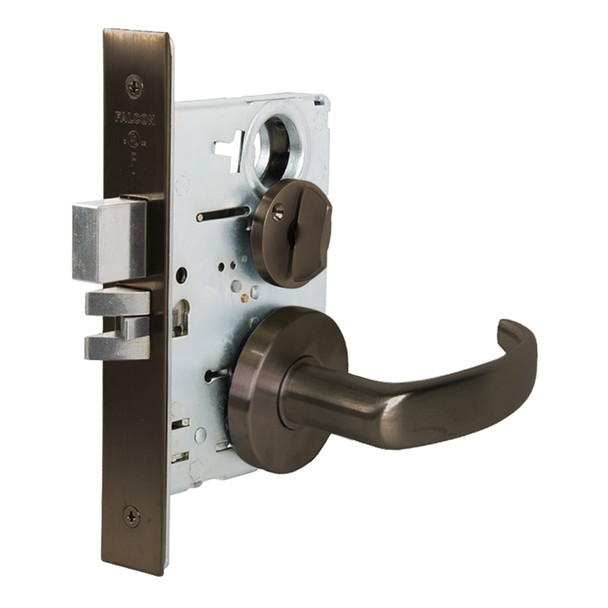

The Falcon MA571L QG 613 is a commercial-grade mortise lock engineered for offices, hospitals, educational facilities, and other high-traffic environments. This heavy-duty lock combines dependable security with interchangeable core (SFIC) compatibility, making it ideal for facilities that need flexible re-keying without lock removal.
The MA571L accommodates door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset with reversible right or left hand operation. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finish selection, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for technical assistance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571L QG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 5/6/7-pin standard or 6/7-pin I/C available
- Keyway: G-keyway standard (A-keyway on I/C)
- Handing: Right hand standard, left hand optional, reversible
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Electrified: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
