Description

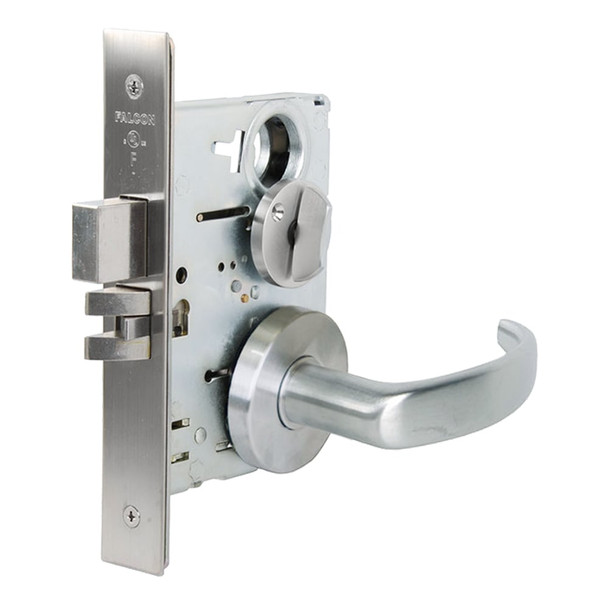

The Falcon MA571L QG 626 is a commercial mortise lock engineered for high-traffic environments in offices, hospitals, and educational facilities. This durable lock combines security with reliability, featuring an interchangeable SFIC core for quick re-keying and a mechanical anti-friction latch bolt designed to handle constant daily use without compromising performance.
The MA571L accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible for left or right hand installation. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, electrified configurations, and proper installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or to discuss your project requirements.
Specifications
- Brand: Falcon
- Model: MA571L QG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyway: G keyway standard on standard cylinder
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA Certification: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
