Description

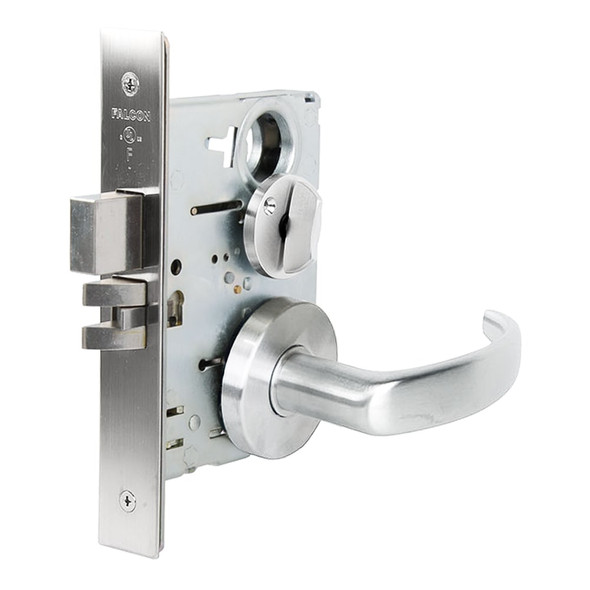

The Falcon MA571L QG 630 mortise lock is a heavy-duty commercial lock built for offices, hospitals, schools, and other institutional buildings. Designed to withstand constant use without failure, this Series 1000 lock combines dependable security with affordable performance. Its interchangeable core system enables quick re-keying in the field.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset, and meets ANSI/BHMA 156.13 and UL 3-hour standards for safety and durability. Compatible with standard SFIC products, it's available in multiple finishes and electrified options. As an authorized Falcon dealer, E.D. Locks provides expert support and keying guidance at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA571L QG 630
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw with saw-resistant rollers
- Cylinder: Solid brass, 5, 6, or 7-pin options
- Keyways: G keyway standard; A keyway on I/C cylinder
- Handing: Right hand standard; left hand optional, reversible
- Finishes: Brass or stainless steel available
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA Rating: Series 1000
- UL Rating: 3-hour A label
- Compliance: ANSI A115.1 strike preparation
