Description

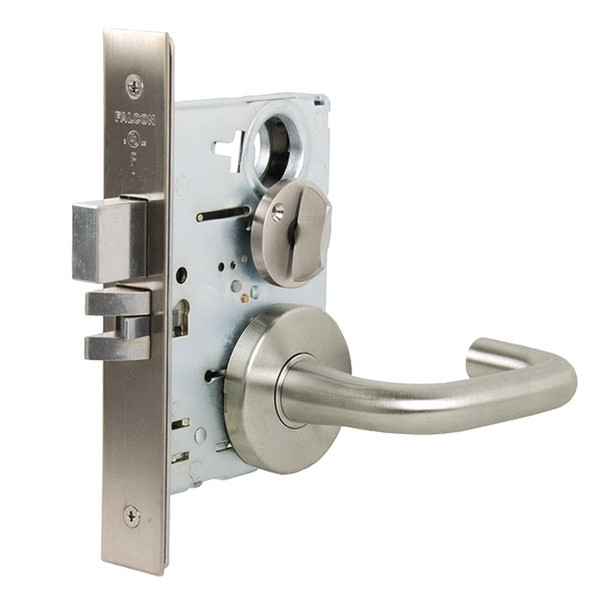

The Falcon MA571L SG 630 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built with cold-formed steel and hardened steel components, this ANSI/BHMA Series 1000 lock delivers reliable security and withstands constant daily use without compromise, making it ideal for high-traffic institutional buildings.
This lock features an interchangeable core (SFIC-compatible) for tool-free re-keying and accommodates standard door thicknesses of 1-3/8" to 2-1/2". Available in 12 or 24 VDC electrified options and multiple finishes. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA571L SG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available on standard cylinders; 6 or 7-pin on interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
