Description

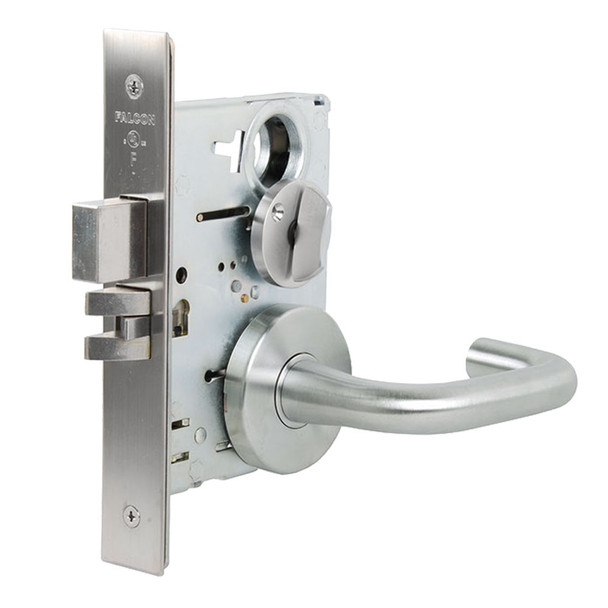

The Falcon MA571L SG 626 is a high-performance mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built on Falcon's proven MA Series platform, it delivers dependable security and durability under constant use. The interchangeable core design enables quick re-keying without removing the lock from the door, reducing maintenance costs and downtime for busy facilities.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. It is compatible with SFIC products and available in multiple configurations including handing options and electrified functions (12 or 24 VDC). As an authorized Allegion dealer, E.D. Locks provides expert guidance on specification, installation, and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA571L SG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C available
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Functions: 12 or 24 VDC available
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Keys: Two nickel silver keys standard
