Description

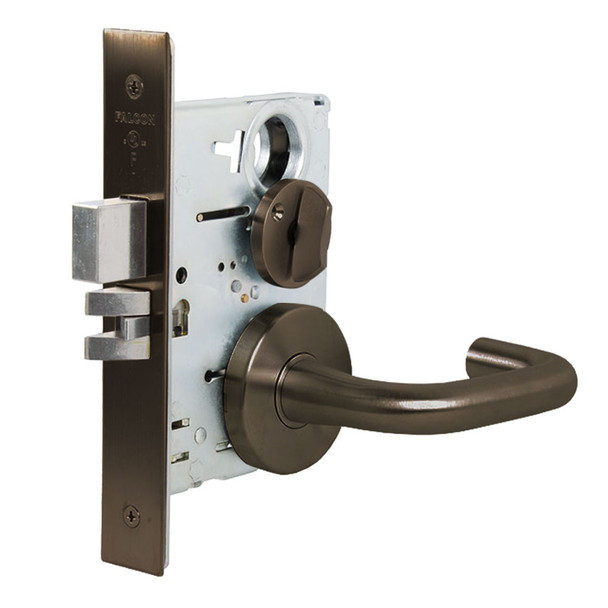

The Falcon MA571L mortise lock delivers commercial-grade security and durability for offices, hospitals, education facilities, and high-traffic commercial spaces. Built to withstand constant use without fail, this Series 1000 lock combines affordability with dependable performance, featuring a mechanical anti-friction latch and saw-resistant dead bolt for reliable everyday operation.
The MA571L accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and includes an interchangeable core for quick re-keying. SFIC-compatible and reversible in the field, it meets ANSI/BHMA 156.13 and carries a 3-hour UL label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, electrified functions, and application support.
Specifications
- Brand: Falcon
- Model: MA571L SG 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, armored front
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin I/C
- Keyway: G keyway standard; A keyway on I/C cylinder
- Strike: Brass or stainless steel, non-handed
- Finishes: SG (Satin Stainless Steel)
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, ANSI A115.1, UL 3-hour A label
- Includes: Two nickel silver keys, thread sealant
