Description

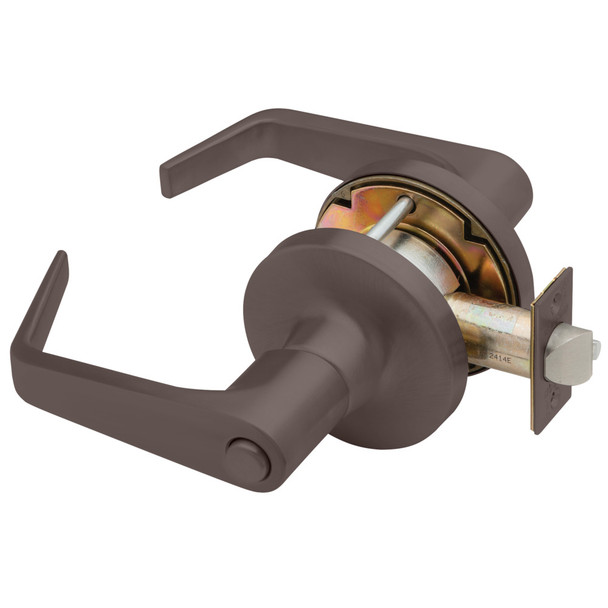

The Falcon T291S D 613 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse institutional applications. Engineered with a compression spring that exceeds ANSI/BHMA Grade 1 testing, it features brass and stainless steel construction for durability and corrosion resistance. The removable cylinder design enables quick re-keying, making retrofits and building updates simple and cost-effective.
This non-handed lock accommodates standard 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset, with thin-door and alternative backset adapters available. It accepts most manufacturer cylinders and is available with conventional or interchangeable core options in multiple pin configurations. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for specifications, keying assistance, and compatibility guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Cylinders: 6-pin standard (5-pin pinning), 6 or 7-pin available
- Keyway: G standard (A on interchangeable core)
- Material: Brass and cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
