Description

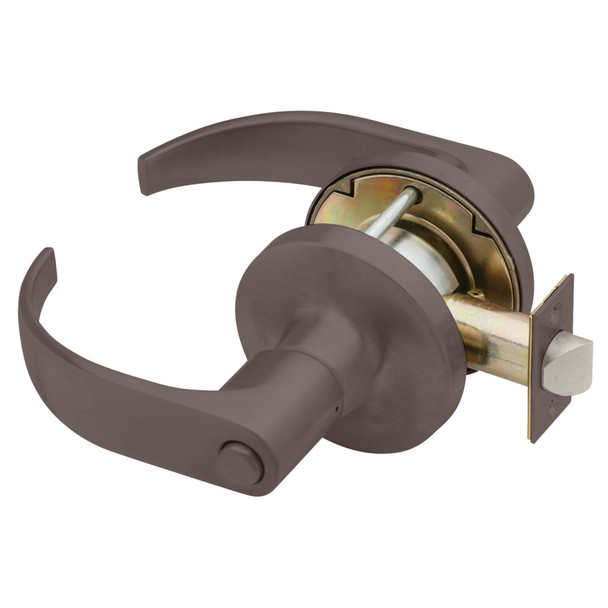

The Falcon T291S Q 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, government buildings, and other facilities demanding durability and reliability at a solid price point.
This lock accepts any manufacturer's cylinder and features removable cylinders for quick re-keying without door modification, simplifying retrofits and maintenance. Available with 6-pin or 7-pin configurations, standard G keyway, or interchangeable core options. For expert guidance on keying, backset selection, door thickness requirements, or trim finishes, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit A30775-000-00 available)
- Backset: 2-3/4" standard, 2-3/8" available, 5" available with link A22161-005-10
- Mechanism: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel springs
- Attachment: Threaded mounting nuts with through-bolted outer trim and inner spindle assembly
- Handing: Non-handed
- Cylinders: Drilled 6-pin chambers, pinned in 5 (6-pin or 7-pin available); removable for re-keying
- Cylinder Material: Solid brass housings and plugs with phosphor bronze springs
- Keys: Two nickel silver keys furnished standard
- Keyways: G keyway standard (conventional), A keyway standard (interchangeable core)
- Interchangeable Core: Small format and large format available
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Latch: 9/16" bolt projection, UL listed with 2-1/4" x 1-1/8" square corner faceplates standard; 3/4" projection available
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip per ANSI A115.2
