Description

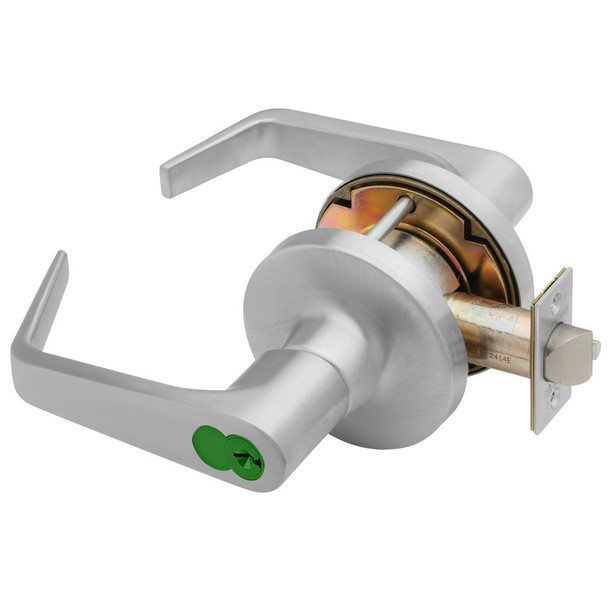

The Falcon T381HD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. It features a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, government buildings, and other demanding environments where reliability and durability are critical.
This lock accepts any manufacturer's cylinder and features a removable cylinder design for quick, easy re-keying without door modifications. Standard door thickness is 1-3/4" to 2-1/8", with adapter kits available for thinner doors. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on specification, keying options, and installation to ensure the right fit for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (adapter kit available for thinner doors)
- Backset: 2-3/4" standard (2-3/8" available; 5" with link)
- Bolt Projection: 9/16" standard (3/4" available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: "G" standard ("A" on I/C cores)
- Interchangeable Core: Small format (SFIC) and large format available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI
- Material: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys included
