Description

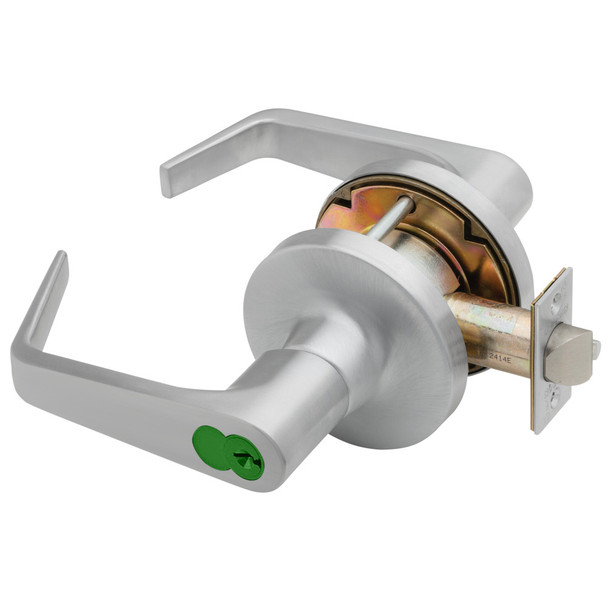

The Falcon T411HD D 626 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. Its compression spring design exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for facilities that demand durability and reliability at a solid price point.
This lock accepts most manufacturers' cylinders and features easily removable cylinders for quick re-keying, simplifying retrofits and maintenance. The T411HD comes pre-assembled and through-bolted for straightforward installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, door thickness adapters, and backset configurations to ensure perfect fit for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kit available for thinner doors)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Bolt Projection: 9/16" standard (3/4" available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard (A keyway on interchangeable core)
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Material: Brass or cold formed steel (zinc plated, dichromated); stainless steel springs
- Keys: Two nickel silver keys standard
- Handing: Non-handed
- Interchangeable Core: Available in small format (SFIC) and large format
