Description

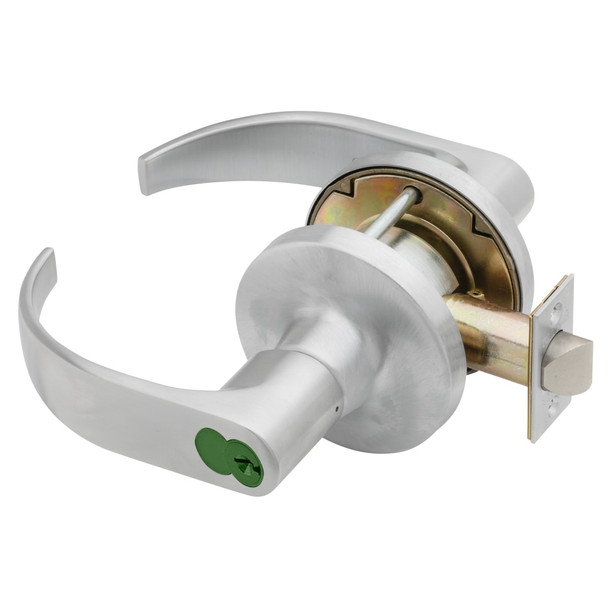

The Falcon T411HD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability where it matters most. Non-handed design simplifies inventory and installation across your facility.
This lock accepts interchangeable cylinders and can be rekeyed in minutes without removing the lock body, perfect for retrofits and ongoing building management. E.D. Locks, an authorized Falcon dealer, offers expert guidance on backset options, door thickness adapters, and cylinder configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for free technical assistance and fast shipping on orders over $450.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit A30775-000-00 available)
- Backset: 2-3/4" standard (2-3/8" also available; 5" backset link A22161-005-10 available)
- Bolt Projection: 9/16" standard (3/4" projection also available)
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available); removable for rekeying
- Cylinder Keyway: G keyway standard on conventional cylinders; A keyway standard on interchangeable core cylinders
- Interchangeable Core: Available in small format (SFIC) and large format
- Cylinder Material: Solid brass housings and plugs with phosphor bronze springs
- Keys: Two nickel silver keys furnished standard
- Trim: Heavy wrought brass or bronze roses; pressure cast solid levers
- Mechanism: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard (UL listed)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Attachment: Threaded mounting nuts; 2 x 10-32 screws through-bolt trim and spindle
- Handing: Non-handed
