Description

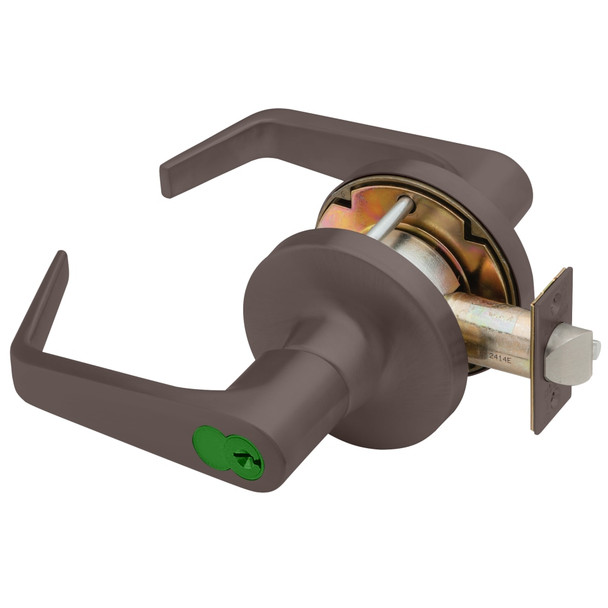

The Falcon T411HD D 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers durability and reliability where it matters most. The removable cylinder design enables quick, easy re-keying without removing the lock body, making retrofits and maintenance simple.
This lock accommodates standard 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset, and accepts most manufacturers' cylinders for maximum flexibility. The brass and cold-formed steel construction is zinc plated and dichromated for rust resistance, while stainless steel springs ensure longevity. Contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, backset configurations, and installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kit available for thinner doors)
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link
- Latch Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners)
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Cylinder: 6-pin chambers, pinned in 5; 6 or 7-pin available
- Keyway: G keyway standard (A keyway on I/C core)
- Cylinder Housing: Solid brass with phosphor bronze springs
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Mechanism: Brass or cold-formed steel, zinc plated, dichromated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
- Features: Removable cylinder design, interchangeable core options (SFIC and large format), adjustable front standard
