Description

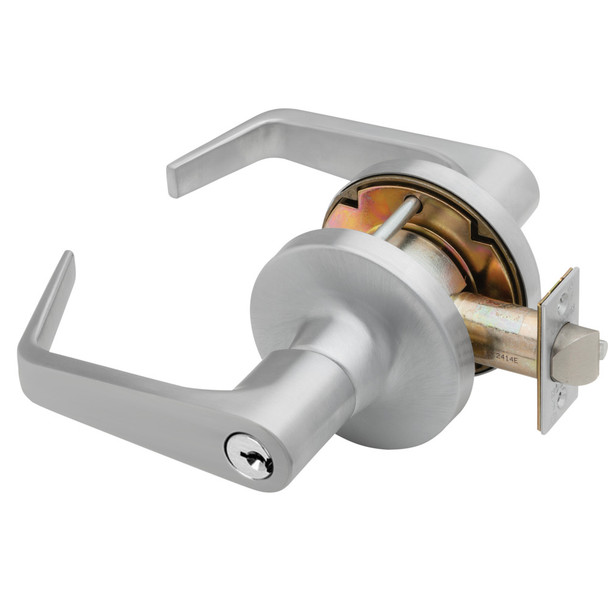

The Falcon T411PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design with removable cylinder for quick re-keying simplifies retrofitting and maintenance. Compression spring construction exceeds ANSI/BHMA Grade 1 requirements, delivering durability and reliability in demanding environments.
Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin-door and alternate backset adapters available. Brass and stainless steel construction resists rust. As an authorized Falcon dealer, E.D. Locks provides expert specification assistance and free shipping on orders over $450. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying options and installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" and 5" available)
- Bolt Projection: 9/16" standard
- Cylinders: 6-pin (5 pinned standard, 6 or 7-pin available)
- Keyway: G keyway standard
- Materials: Brass and cold-formed steel with zinc plating; stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8"
- Strike: 4-7/8" x 1-1/4" ANSI
- Keys: Two nickel silver keys furnished
- Handing: Non-handed
