Description

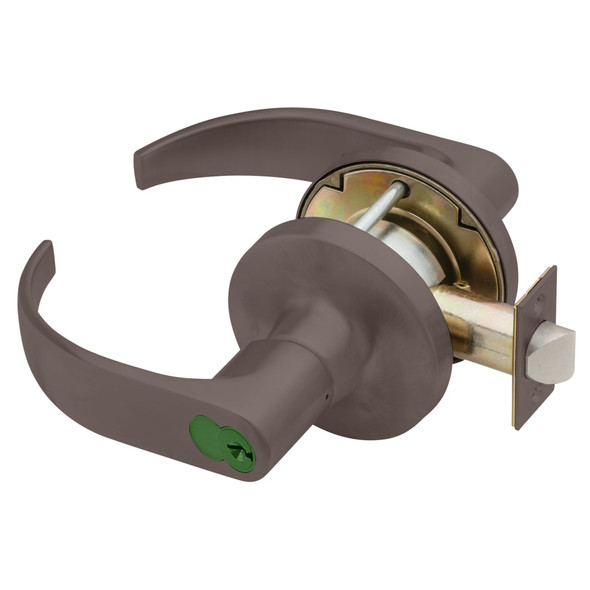

The Falcon T501HD A 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and high-abuse institutional applications. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers durability and reliability in demanding environments where security and longevity matter most.
This lock accommodates standard 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset and features removable cylinders for quick re-keying without replacing hardware. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on backset options, thin door adapters, and custom cylinder configurations to ensure perfect fit and function.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit available
- Backset: 2-3/4" standard; 2-3/8" available; 5" backset link available
- Bolt Projection: 9/16" standard; 3/4" projection available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Cylinder: 6-pin chambers pinned in 5; 6-pin and 7-pin options available
- Keyway: G keyway standard on conventional cylinders; A keyway on interchangeable core
- Cylinder Housing: Solid brass with phosphor bronze springs
- Lock Mechanism: Brass or cold formed steel with zinc plating and dichromate finish
- Springs: Stainless steel
- Handing: Non-handed
- Interchangeable Core: Available in small format (SFIC) and large format
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Keys: Two nickel silver keys furnished standard
- Installation: Through-bolted assembly with (2) 10-32 screws
