Description

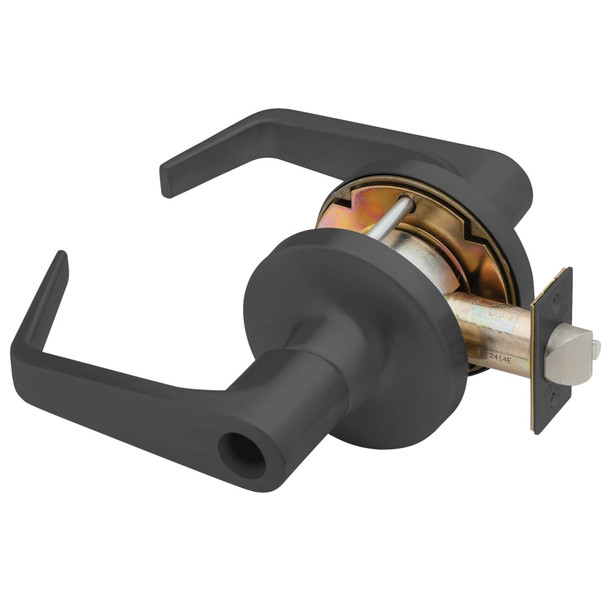

The Falcon T511LD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. It exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design and brass or cold-formed steel construction. The removable cylinder allows quick re-keying, making retrofits simple and cost-effective.
Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" also available). Comes with two nickel silver keys and accepts most manufacturer cylinders. An authorized E.D. Locks dealer, we provide expert guidance on handing, keying options, and thin-door adapters. Contact sales@edlocks.com or call 1-877-207-6067 for specification questions or to discuss your project needs.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter A30775-000-00 available)
- Backset: 2-3/4" standard (2-3/8" available; 5" with link A22161-005-10)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available); removable for re-keying
- Keyway: G keyway standard (A keyway standard on interchangeable core)
- Handing: Non-handed
- Materials: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Keys Furnished: Two nickel silver keys standard
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
