Description

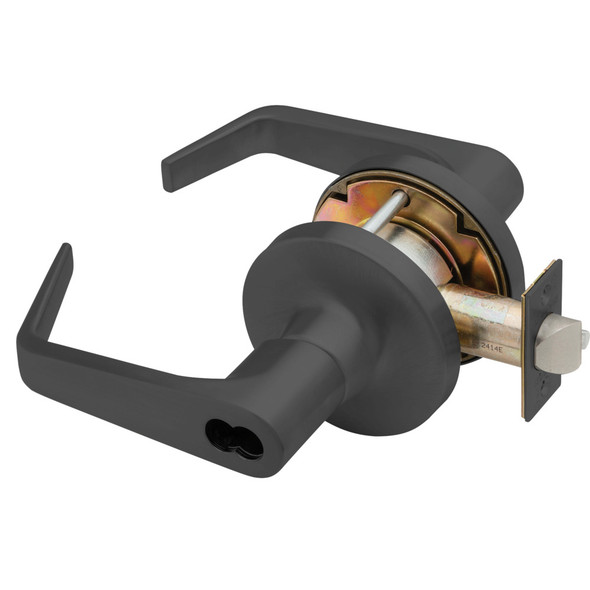

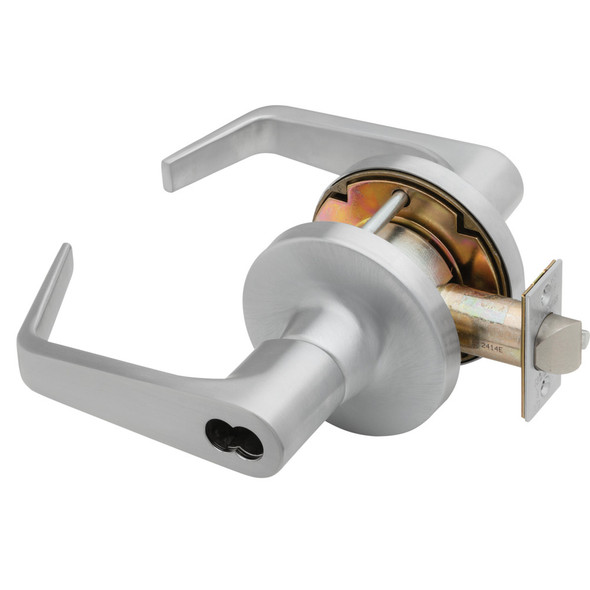

The Falcon T561BD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse environments. Designed for institutional applications where durability matters, this lock features a compression spring construction that exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable performance at a solid price point.
This lock accepts standard cylinders and allows easy re-keying for quick retrofits. Comes standard for 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset; thin door adapters and alternative backsets are available. All internal parts are brass or zinc-plated steel with stainless steel springs for rust resistance. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, interchangeable core cylinders, and custom configurations.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" and 5" also available)
- Bolt Projection: 9/16" standard
- Cylinders: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Construction: Brass and cold-formed steel, zinc plated and dichromated
- Springs: Stainless steel main springs; phosphor bronze cylinder springs
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
- Strike: 4-7/8" x 1-1/4" ANSI strike
