Description

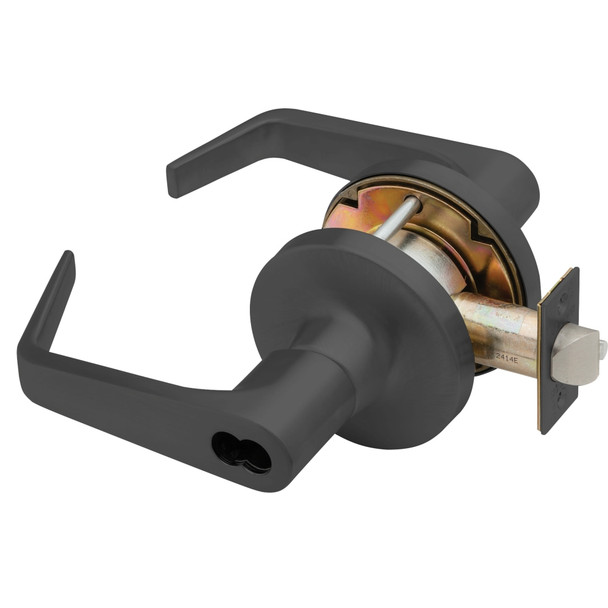

The Falcon T501BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications where durability matters. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this non-handed lock handles demanding abuse environments while maintaining reliable performance. Its removable cylinder design simplifies re-keying and retrofitting existing buildings.
The T501BD fits standard doors 1-3/4" to 2-1/8" thick (thin-door adapters available separately) and comes preassembled with brass roses and cast levers for quick installation. Cylinders feature 6-pin chambers pinned in 5 (6 or 7-pin options available), interchangeable core designs, and solid brass construction. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying guidance, trim finishes, and backset options to match your project requirements.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: "G" standard, other options available
- Finish: Brass/bronze roses with cast levers
- Handing: Non-handed
- Keys: Two nickel silver keys standard
- Strike: 4-7/8" x 1-1/4" ANSI strike included
