Description

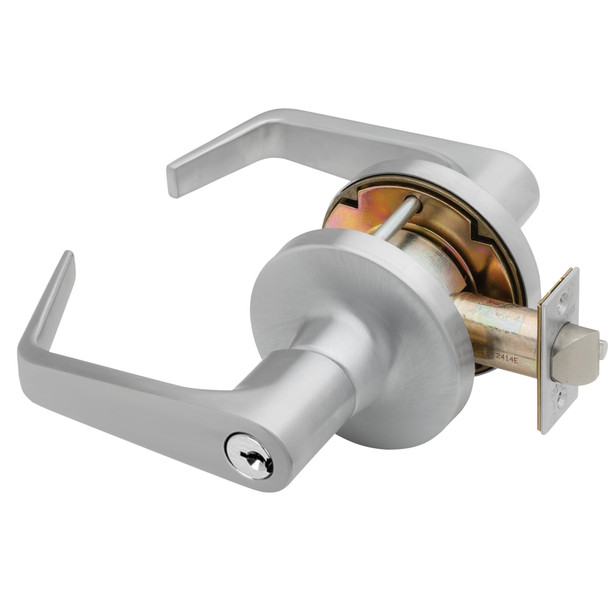

The Falcon T521PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design with removable cylinder for easy rekeying simplifies retrofitting. Compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security at institutional-grade quality.
Compatible with standard 1-3/4" to 2-1/8" doors; thin door adapters and alternative backset options available. Cylinder assemblies are removable for quick rekeying, and interchangeable core designs support both small and large format systems. As an authorized Falcon dealer, E.D. Locks provides expert specification guidance and technical support via sales@edlocks.com or 1-877-207-6067 to ensure correct configuration for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Latch Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin drilled, pinned in 5 (6-pin and 7-pin options available)
- Keyway: G keyway standard (A keyway on I/C cores)
- Material: Brass or cold formed steel, zinc plated and dichromated
- Springs: Stainless steel body, phosphor bronze cylinder
- Keys: Two nickel silver keys standard
- Handing: Non-handed
