Description

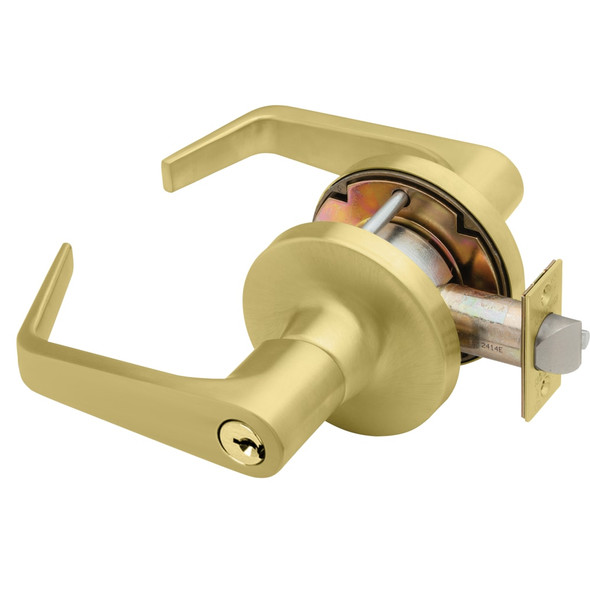

The Falcon T521PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. It exceeds ANSI/BHMA Grade 1 testing standards with a compression spring design and accepts any manufacturer's cylinder, making it ideal for retrofit installations where quick re-keying and easy maintenance matter.
Fits standard 1-3/4" to 2-1/8" thick doors with 2-3/8" and 5" backset options available. Cylinder assemblies are removable for convenient re-keying, and interchangeable core designs (SFIC/large format) are offered for most manufacturers. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on specifications, adaptation kits, and keying options tailored to your building's security needs.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kit available for thinner doors)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Latch Bolt Projection: 9/16" standard (3/4" option with 2-3/4" backset also available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners, UL listed
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin options available)
- Keyways: G keyway standard on conventional cylinders, A keyway standard on I/C cores
- Handing: Non-handed
- Material: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel springs; phosphor bronze cylinder springs; wrought brass or bronze roses
- Keys Furnished: Two nickel silver keys standard
- Interchangeable Core: SFIC and large format designs available for most manufacturers
