Description

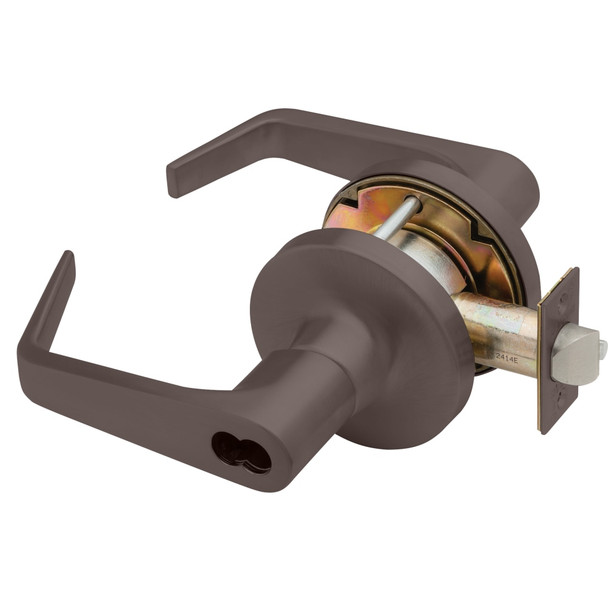

The Falcon T571BD D 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for applications demanding durability and reliability in demanding environments where security and longevity matter most.
This lock accommodates standard manufacturer cylinders and supports quick, tool-free re-keying via removable cylinder assembly, simplifying retrofits and maintenance. Fits 1-3/4" to 2-1/8" standard door thickness with optional thin-door adapters. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, backset configurations, and interchangeable core availability.
Specifications
- Brand: Falcon
- Model: T571BD D 613 43-005
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin-door adapter A30775-000-00 available)
- Backset: 2-3/4" standard (2-3/8" also available; 5" backset with Link A22161-005-10)
- Cylinder: 6-pin chambers, pinned in 5 (6-chamber pinning and 7-pin available)
- Keyway: G keyway standard
- Bolt Projection: 9/16"
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners, UL listed
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Construction: Brass or cold-formed steel (zinc plated, dichromated); stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
- Interchangeable Core: Small format (SFIC) and large format available
