Description

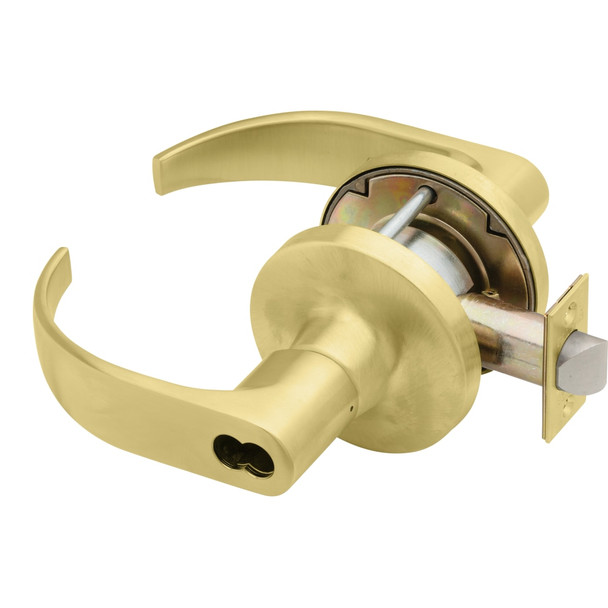

The Falcon T Series T571JD-SCH Q 606 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. Built with a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers durability and reliability where abuse-resistant hardware is essential. Non-handed design and removable cylinder simplify installation and re-keying across multiple doors.
This lock accommodates standard 1-3/4" to 2-1/8" door thickness, with adapter kits available for thinner doors. The removable cylinder (6-pin or optional 7-pin, with interchangeable core options) allows quick re-keying without disassembly. As an authorized Falcon dealer, E.D. Locks provides expert guidance on backset options, keyways, and trim finishes. Contact our sales team at 1-877-207-6067 or sales@edlocks.com to confirm specifications and secure your order.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (adapter kit available for thinner doors)
- Backset: 2-3/4" standard (2-3/8" available; 5" optional)
- Bolt Projection: 9/16" standard (3/4" optional)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin drilled, 5-pin standard (6 or 7-pin available)
- Keyway: "G" standard on conventional; "A" on interchangeable core
- Cylinder Housing: Solid brass with phosphor bronze springs
- Mechanism: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Handing: Non-handed
- Trim: Heavy wrought brass or bronze roses; pressure-cast levers
- Keys: Two nickel silver keys included
- Interchangeable Core: Small format (SFIC) and large format available
