Description

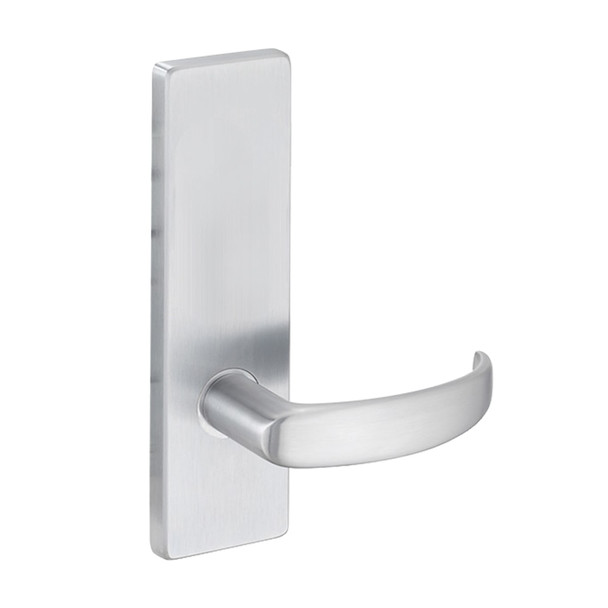

The Falcon TP75E Q 626 is a commercial mortise lock built for high-traffic environments like offices, hospitals, and educational facilities. Its interchangeable core design enables quick re-keying without removing the lock, while the two-piece stainless steel latch and saw-resistant roller deadbolt deliver reliable security through constant daily use.
Compatible with standard SFIC products, this lock fits door thicknesses from 1-3/8" to 2-1/2" and meets ANSI/BHMA Series 1000 and UL 3-hour requirements. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and electrified options. Contact sales@edlocks.com or 1-877-207-6067 for specifications, pricing, and installation support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard, left hand optional, reversible in field
