Description

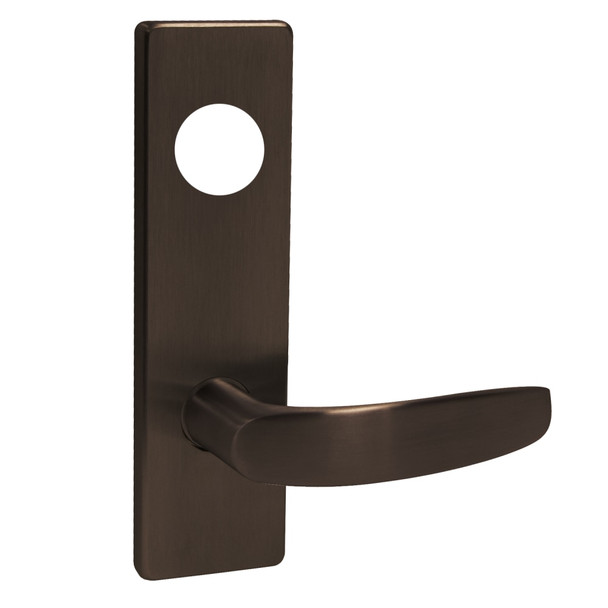

The Falcon TP85E A 613 is a heavy-duty mortise lock engineered for commercial buildings including offices, hospitals, and educational facilities. This MA Series lock combines affordability with proven reliability, delivering security and durability under constant use. The interchangeable core design enables quick re-keying without removing the lock from the door.
Compatible with standard SFIC products, this lock accommodates door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert installation guidance and access to the full range of keying options. Contact our sales team at sales@edlocks.com or call 1-877-207-6067 for specification details and ordering assistance.
Specifications
- Brand: Falcon
- Model: TP85E A 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway standard, A keyway on interchangeable core
- Handing: Right hand standard, left hand optional, reversible
- Finishes: Brass or stainless steel faceplates and strike
- Electrified Functions: 12 or 24 VDC available
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
