Description

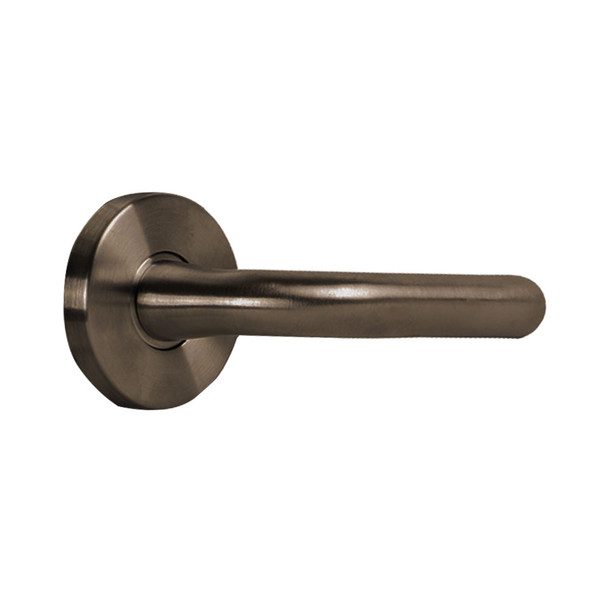

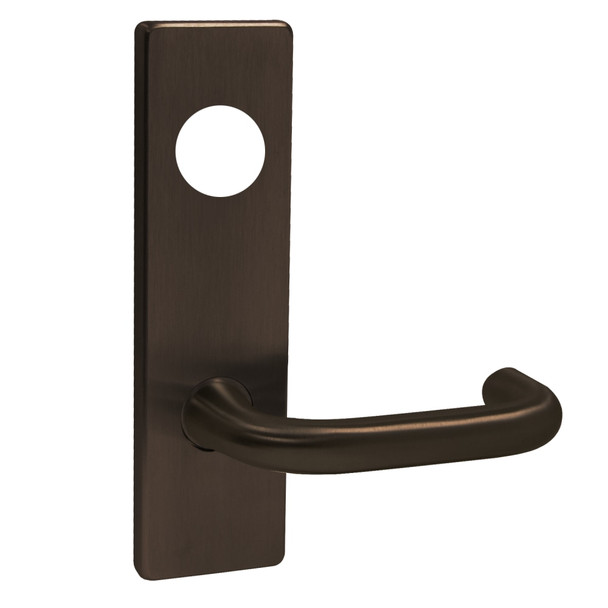

The Falcon TP85E S 613 is a heavy-duty mortise lock designed for high-traffic commercial environments including offices, hospitals, and educational facilities. This MA Series lock combines security with durability, featuring a two-piece stainless steel latch bolt and a 1-inch dead bolt with saw-resistant rollers to withstand constant use without compromise.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and featuring an interchangeable core (SFIC) for quick re-keying, this lock simplifies maintenance and retrofits. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: "G" standard (standard cylinder); "A" standard (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: Series 1000 (156.13)
- UL: 3 hour A label
- Keys Furnished: Two nickel silver keys standard
